GDI White Right Hand Dyad Casement Window Operator with 4-1/2" Link Arm

$161.629

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI White Right Hand Dyad Casement Window Operator with 4-1/2" Link Arm

Short description

This unique GDI Dyad Casement Operator provides smooth, continuous control of casement and single vent awning windows. This operator works with windows hinged on the left side when viewed from the inside. The dyad, or two-linked design, provides smooth operation of windows. The detachable clip linkage allows this operator to be disengaged from the sash for easy assembly and installation. Machine screws, set five inches (127 millimeters) on center, thread thru the window frame and into the back of the operator case for mounting.

Color

Finish: WHITE

Brand

C.R. Laurence

Weight

1.2 lb (544g)

Minimum order

1 Package

Oversized

sku

EP23092

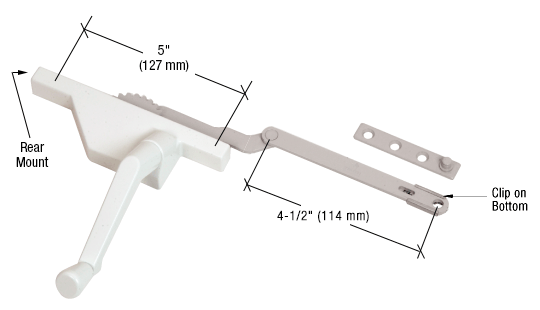

Two-Linked Design From Truth® Hardware#Contemporary style GDI Truth® Dyad Face Mount Casement Operator will work on windows that are designed to open up to 90 degrees. Both gear arm and link arm are flat with no offsets, and the attachment clip is located on the underside of the link arm. Link arm length is measured from center of rivet to center of attachment hole. This Operator face mounts from the outside with two screws, 5" (127 mm) apart. Operators having a third, center mounting tab (underneath the housing) can be special ordered. The crank handle and most commonly used stud bracket have been included.
