36" Tubular Spiral Tilt Window Balance Blue Bushing

For any questions or pricing call 301-779-2430.
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
This GDI Tubular Spiral Window Balance for tilt type windows will replace a 9/16 inch (14.3 millimeter) metal or plastic tube balance with a sash load capacity of up to 35 pounds (15.8 kilograms). The 9/16 inch (14.3 millimeter) size of the metal tube is commonly referred to as 5/8 inch (15.9 millimeter) in the industry. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time. **DISCONTINUED**
Weight
0.5
Minimum order
1 Package
Oversized
No
Tube diameter
9/16 in (14.3 mm)
sku
FH3630
This GDI Tubular Spiral Window Balance for tilt type windows will replace a 9/16 inch (14.3 millimeter) metal or plastic tube balance with a sash load capacity of up to 35 pounds (15.8 kilograms). The 9/16 inch (14.3 millimeter) size of the metal tube is commonly referred to as 5/8 inch (15.9 millimeter) in the industry. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.

  • Blue Bushing Indicates Sash Load Weights of Up to 35 Pounds (15.9 Kg)
  • Tilt Window Type with Industry Standard 9/16" Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances




    • How to Order Tubular Spiral Window Balances
  • 1. Check the tube diameter of the metal or plastic tube on the old balance.

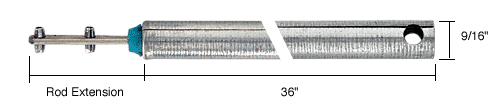

  • 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
  • 3. Check the color of the nylon bushing.
  • 4. Verify that the rod extension protruding from the nylon bushing matches what is shown.
  • 5. Match tube diameter, tube length, nylon bushing color against the information shown next to the Catalog Number. If all agree, and the rod extension matches the one in the photo, then this is the correct balance.
