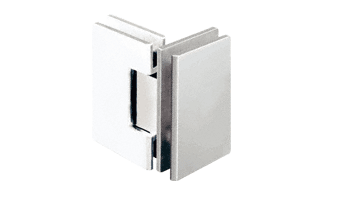

Polished Nickel Geneva 092 Series 90 Degree Glass-To-Glass Hinge

The GDI Geneva 092 Series 90 Degrees Glass-to-Glass Hinges replace the old style Geneva 090 Series 90 Degrees Glass-to-Glass Hinge which required a cut-out in both the door and the fixed panel. This new style requires only two holes (per hinge) in the fixed panel, and a cut-out in the door.

New Model Eliminates Small End Plate Covering Hinge on Edge of Fixed Panel

Requires Holes in Fixed Panel and Cut-Out in Door

3 Year Warranty

After installation of the old style Geneva a small end plate was adhered to the edge of the fixed panel. The new style eliminates the small end plate, leaving a more aesthetic, uninterrupted glass edge for the fixed panel.

Standard Reversible Pivot Pin:

Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 degrees. The opposite side is marked 85 degrees. Standard Geneva Hinges come with the 90 degrees side activated, which brings the door to the standard closing position. Offset Models come with the Pin pre-set for 85 degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the standard 5 Degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, call our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16 to 1/2 inch glass (8 to 12 millimeters) the hinge will hold up to 80 pounds (36 kilograms) with a maximum width of 28 inches (711 millimeters).

Using three hinges with 5/16 to 1/2 inch glass (8 to 12 millimeters) the hinge will hold up to 120 pounds (54 kilograms) with a maximum width of 32 inches (813 millimeters).

Specifications:

Glass Thickness: 5/16 to 1/2 inch (8 to 12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 Degrees Inwards and Outwards

Closing Type: Self-Centering when within 15 Degrees of closed position

Cut-Out Required

Includes: One Hinge, Gaskets, Screws and Template

Custom Finishes are available upon request. Contact the GDI Technical Sales Shower Door Department at (800) 421-6144, Ext. 7740, or by e-mail.
