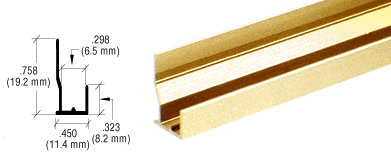

Brite Gold Anodized Aluminum FHA Type "J" Channel

For any questions or pricing call 301-779-2430.
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
This GDI FHA Type J-Channel holds the mirror an 1/8 inch (3 millimeters) from the wall and the raised rib at the bottom of the channel prevents moisture from being trapped in the channel. This extrusion design meets FHA specifications and prevents damage to the silver mirror backing due to accumulation of condensation. It can be used with the Cleat and Top Channel as the third component of the GDI Mirror Mount System.
Color
Brite Gold
Weight
1.2000
Case qty
50
Face
5/16 in (7.9 mm)
Minimum order
1 Stock Length
Thickness
.039 in (1.00 mm)
sku
D638BGA
This GDI FHA Type J-Channel holds the mirror an 1/8 inch (3 millimeters) from the wall and the raised rib at the bottom of the channel prevents moisture from being trapped in the channel. This extrusion design meets FHA specifications and prevents damage to the silver mirror backing due to accumulation of condensation. It can be used with the Cleat and Top Channel as the third component of the GDI Mirror Mount System.

  • 9/32" (7.1 mm) Channel Width
  • Meets FHA Specifications




    • Hint: Closed ends can be created by trimming back a potion of the channel, and bending back the front flaps to close off the ends.

    Note: Not recommended for schools, hospitals, or institutions where mirror edges should be protected on all four sides (see D1950).
