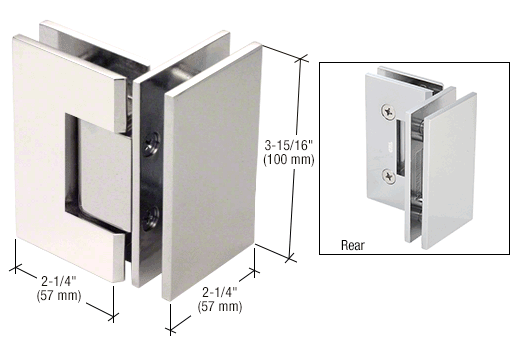

GDI Polished Nickel Vienna 092 Series 90 Degree Glass-to-Glass Hinge

$239.434

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Polished Nickel Vienna 092 Series 90 Degree Glass-to-Glass Hinge

Short description

The GDI Vienna Series of professional hinges is designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Vienna Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. This allows the Vienna Hinge to be used with it's own GDI "mouse-ears" cut-out, or in some cases fit competitive "mouse-ears" cut-outs. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own GDI rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. An Optional Custom Pivot pin can be ordered to accommodate off angle installations.

Color

Finish: POLISHED NICKEL

Height

3-15/16" (100 mm)

Width

2-1/4" (57 mm)

Brand

C.R. Laurence

Weight

2 lb (907g)

Minimum order

1 Each

Oversized

Important Notes

GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.

sku

V1E092PN

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass Available in Several Beautiful Finishes 3 Year Warranty 90 Degree Glass-to-Glass Use Monolithic Tempered Glass#GDI Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own GDI "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own GDI rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.
