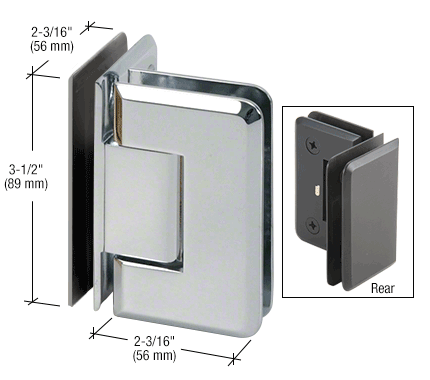

GDI Polished Chrome Pinnacle 092 Series 90 Degree Glass-to-Glass Hinge

$209.365

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Polished Chrome Pinnacle 092 Series 90 Degree Glass-to-Glass Hinge

Short description

The new style GDI Pinnacle 092 Series 90 Degrees Glass-to-Glass Hinge replaces the old style Pinnacle 090 Series 90 Degrees Glass-to-Glass Hinge which required a cut-out in both the door and the fixed panel. This new style requires only two holes (per hinge) in the fixed panel, and a cut-out in the door.

Color

Finish: POLISHED CHROME

Height

3-1/2" (89 mm)

Width

2-3/16" (56 mm)

Brand

C.R. Laurence

Weight

2 lb (907g)

Minimum order

1 Each

Oversized

Important Notes

GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.

sku

P1N092CH

Self-Centering with Reversible 5 Degree Pivot Pin Available in Several Beautiful Finishes Three Year Warranty 90 Degree Glass-to-Glass Use Monolithic Tempered Glass#The GDI Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.
