GDI Polished Brass Prima #1 Pin 01 Series Top or Bottom Mount Hinge

$181.675
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
The GDI Prima #1 Pin Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Prima Hinges are self-centering, with four springs for maximum retention strength. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Prima Series is adaptable to GDI's Deluxe Header System for shower enclosures not extending to full ceiling height.
Color
Finish: POLISHED BRASS

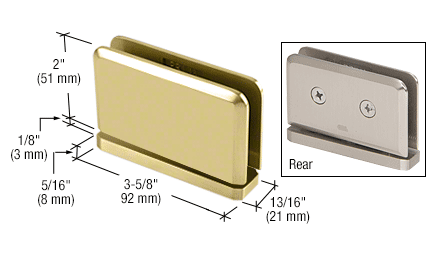

Height
2" (51 mm)
Width
3-5/8" (92 mm)
Brand
C.R. Laurence
Weight
2 lb (907g)
Minimum order
1 Each
Oversized
No
Important Notes
GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.
sku
PPH0151BR
Number One Pivot Pin Model for Mounting at Top Left or Bottom Right of Door (Viewed from Outside) Pre-Set 5 Degree Pin for Tighter Door Closure Available in Several Beautiful Finishes 3 Year Warranty Use Monolithic Tempered Glass U.S. Patent 5,297,313#GDI Prima 5 degree Pre-Set Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) thick tempered safety glass. The Number One Pivot Pin Model is set so that it would be used at either the top left or bottom right of the door. The Number Two Pivot Pin Model is set so that it would be used at either the top right or bottom left of the door. When installing, you will always use one Number One Model, and one Number Two Model. They can then be positioned with the options described above. The 5 degree Pivot Pins allow the door to close 5 degree further into the shower enclosure. This is especially helpful in closing the door tightly against a strike jamb. These hinges may be mounted floor and ceiling, or into our Deluxe Header System.
