GDI Polished Brass Pinnacle 337 Series Adjustable Wall Mount Full Back Plate Hinge

$157.469

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Polished Brass Pinnacle 337 Series Adjustable Wall Mount Full Back Plate Hinge

Short description

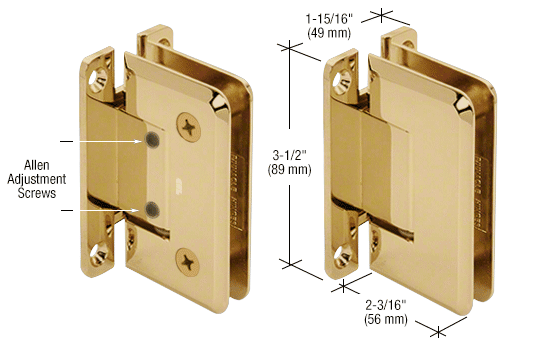

The GDI Pinnacle Adjustable Series of professional hinges is able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Pinnacle Adjustable Series has taken our popular Pinnacle Series to a new level. Adjustment to accommodate the angle desired (up to 90 degrees) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. By merely tightening the allen screws, your door will close precisely to 0 degrees. The door can swing 90 degrees inwards and outwards (adjusting angle from factory set position will reduce 90 degrees swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.

Color

Finish: POLISHED BRASS

Height

3-1/2" (89 mm)

Width

2-3/16" (56 mm)

Brand

C.R. Laurence

Weight

2 lb (907g)

Minimum order

1 Each

Oversized

Important Notes

GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.

sku

P1N337BR

Adjustable to Any Angle Up To 90 Degree Without Removing Door Available in Several Beautiful Finishes Three Year Warranty Adjustable Wall Mount Full Back Plate Use Monolithic Tempered Glass#GDI Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
