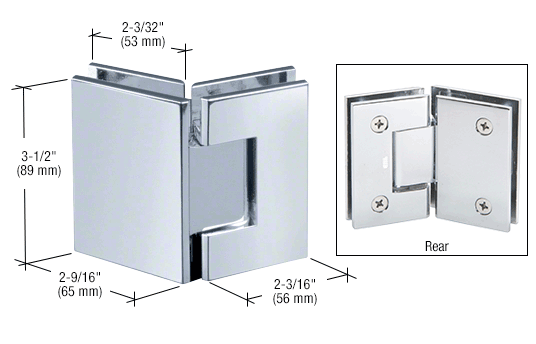

GDI Chrome Geneva 045 Series 135º Glass-to-Glass Hinge
$186.004
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
These new GDI Geneva 045 Series 135 Degree Glass-to-Glass Hinges are used in conjunction with the appropriate Geneva Pony Wall Mount Hinge for a 135 Degree angle. Geneva Hinges are self-centering, and contain a reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Color
Finish: CHROME
Height
3-1/2" (89 mm)
Width
2-9/16" (65 mm)
Brand
C.R. Laurence
Weight
2 lb (907g)
Minimum order
1 Each
Oversized
No
Important Notes
GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.
sku
GEN045CH
Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes
Three Year Warranty
135º Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
Use Monolithic Tempered Glass#The GDI Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.
