GDI Brushed Nickel Geneva 280 Series 180 Degree Pony Wall Mount Hinge

$191.269

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Brushed Nickel Geneva 280 Series 180 Degree Pony Wall Mount Hinge

Short description

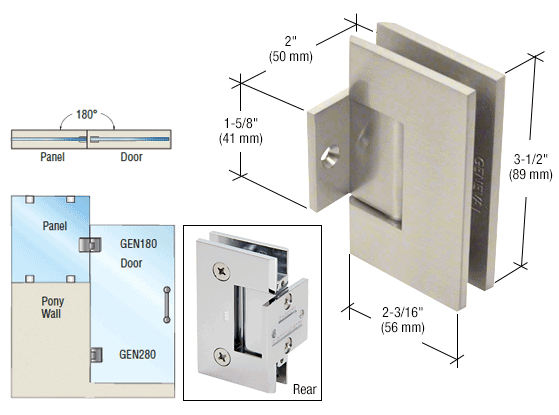

Our GDI Geneva Series 180 Degree Pony Wall Mount Hinges are used in conjunction with the Geneva 180 Degree Glass-to-Glass hinge for use with 180 degree pony wall applications. Previously, the tile or marble had to be cut to allow the wall mount hinge to be recessed. That adjustment aligns the pivot points between both hinges. To eliminate this time consuming step, GDI has produced these modified wall mount hinges with a shortened center block (containing only one centering spring), and a small back plate (with only two mounting holes). This allows the hinge to be mounted to the surface of the tile or marble, and have it's pivot point match up with the glass-to-glass hinge pivot point above. Geneva Hinges are self-centering, and contain a reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Color

Finish: BRUSHED NICKEL

Height

3-1/2" (89 mm)

Width

2-3/16" (56 mm)

Brand

C.R. Laurence

Weight

2 lb (907g)

Minimum order

1 Each

Oversized

Important Notes

GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.

sku

GEN280BN

Self-Centering with Reversible 5 Degree Pivot Pin Custom Pivot Pin Available Many Standard Finishes 3 Year Warranty Pony Wall Mount for 180 Degree Application Use Monolithic Tempered Glass#These GDI Geneva Pony Wall Mount Series hinges can be used in place of the standard wall-to-glass hinges normally utilized when using wall mount hinges on a pony wall, and glass-to-glass hinges above them. The GEN280 model is for use with 180 degree applications, while the GEN245 is for use with 135 degree applications. Previously in this application the tile or marble had to be cut to allow the wall mount hinge to be recessed. That adjustment aligned the pivot points between both hinges to allow proper installation. Geneva Pony Wall Mount Hinges are modified with a shortened center block (containing only one centering spring) and a small back plate (with only two mounting holes). Each hinge has the same Reversible 5 degree Pivot Pin as our standard Geneva Hinge.
