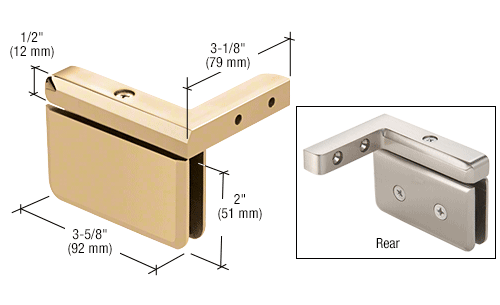

GDI Brass Prima 05 Series Right Hand Offset Mount Hinge

$241.644

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Brass Prima 05 Series Right Hand Offset Mount Hinge

Short description

The GDI Prima Series of professional hinges is able to accommodate 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass. A variety of four styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Prima Hinges are self-centering, with four springs for maximum retention strength. Optional 5o Pivot Pin Sets are available to accommodate "off angle" installations.

Color

Finish: BRASS

Brand

C.R. Laurence

Weight

2 lb (907g)

Minimum order

1 Each

Oversized

Important Notes

GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.

sku

PPH05RBR

Offset Bracket Wall Mount (Right Hand Mount When Viewed From Outside of Shower) Self-Centering with Optional 5 Degree Pivot Pin Set Available in Several Beautiful Finishes 3 Year Warranty Use Monolithic Tempered Glass U.S. Patent 5,297,313#GDI Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
