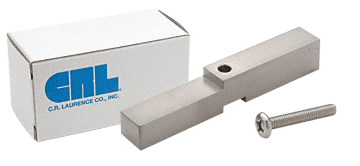

Brushed Nickel Adapter Block for Prima, Shell and Rondo Hinges

For any questions or pricing call 301-779-2430.
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
This GDI Adapter Block is commonly used with the Prima (not Junior or Senior series), Cardiff, Shell, and Rondo Series of hinges. The Adapter Block allows the hinge to be mounted directly into the Shower Deluxe Header Assembly and can be adjusted sideways to any position required. The Adapter Block has a clearance notch which allows it to fit under the wall bracket when the hinge is mounted close to a wall. A drilled 3/16 inch (5 millimeter) hole in the header is required for installation and the hinge base plate must be removed to mount the hinge to the header. Each Adapter Block is individually packed with a screw.
Color
Brushed Nickel
Width
1/2 in (12 mm)
Weight
0.1250
Minimum order
1 Each
sku
HAB01BN
This GDI Adapter Block is commonly used with the Prima (not Junior or Senior series), Cardiff, Shell, and Rondo Series of hinges. The Adapter Block allows the hinge to be mounted directly into the Shower Deluxe Header Assembly and can be adjusted sideways to any position required. The Adapter Block has a clearance notch which allows it to fit under the wall bracket when the hinge is mounted close to a wall. A drilled 3/16 inch (5 millimeter) hole in the header is required for installation and the hinge base plate must be removed to mount the hinge to the header. Each Adapter Block is individually packed with a screw.

  • Allows Hinges to be Mounted Into Deluxe Header Kits
  • Fits Prima, Cardiff, Shell and Rondo Series Pivot Hinges
  • Available in Several Finishes




    • Each adapter block is individually packed with a screw.

    HAB01BA is for Brite Anodized and Polished Nickel Headers
    HAB01BGA is for Brite Gold Anodized and Satin Brass Headers
    HAB01SC is for Satin Anodized Headers
    HAB01BSC is for Brushed Anodized Headers
    HAB01BN is for Brushed Nickel Headers
    HAB010RB is for Oil Rubbed Bronze and Antique Brass Headers
    HAB01BL is for Polished Copper, Antique Brushed Copper and Black Headers
    HAB01W is for White Headers
