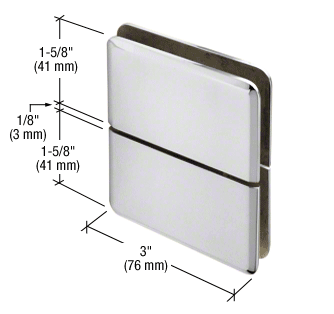

GDI Chrome Junior Prima 02 Series Glass-to-Glass Mount Hinge

$378.599

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Chrome Junior Prima 02 Series Glass-to-Glass Mount Hinge

Short description

The GDI Junior Prima Series of professional hinges is able to accommodate 1/4 inch (6 millimeter) thick tempered safety glass. A variety of two styles, Top and Bottom Mount and Glass-to-Glass types, gives design flexibility. Advantages of the Junior and Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Glass Top Pivot Hinge is used for doors having fixed transoms. Placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength.

Color

Finish: CHROME

Brand

C.R. Laurence

Weight

2 lb (907g)

Minimum order

1 Each

Oversized

Important Notes

GDI Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the GDI Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for GDI hinges may not match those of other brands.

sku

JRPPH02CH

Glass-to-Fixed Transom Mount For Use with 1/4" (6 mm) Glass Available in Several Beautiful Finishes 3 Year Warranty U.S. Patent 5,297,313#Advantages of GDI Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. The Junior Prima Series is adaptable to our Junior Header Kit.
