Red Oversized Fixed Panel U-Clamp - UC79RD

$128.635
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
GDI Oversized Fixed Panel U-Clamp performs the same function as our Traditional Clamps. They are especially recommended for 1/2 inch (12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness is required by the Temperer (from the edge of the glass to the closest edge of the hole).
Color
Red

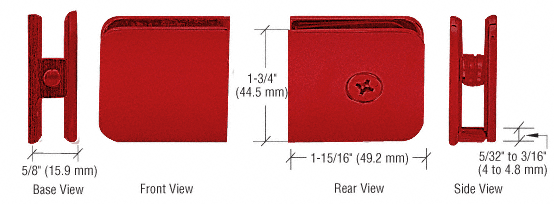

Height
1-15/16 in (49 mm)
Width
1-3/4 in (44 mm)
Brand
C.R. Laurence
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
UC79RD
GDI Oversized Fixed Panel U-Clamp performs the same function as our Traditional Clamps. They are especially recommended for 1/2 inch (12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness is required by the Temperer (from the edge of the glass to the closest edge of the hole).

  • For 5/16 to 1/2" (8 to 12 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • Note: The stud that goes through the hole made in the glass is positioned further from the edge of the glass than that of the Standard U-Clamp. This makes the Oversized U-Clamp the preferred clamp of most Temperers for 1/2 inch (12 millimeter) thick glass.

    Specifications:
  • Material: Solid Brass
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Hole Diameter Required: 5/8 to 3/4 Inch (16 to 19 millimeter)
  • Includes: Mounting Screw and Gaskets
  • Note: An Additional Set of Gaskets is Required for 5/16 Inch (8 millimeter) Glass Cat. No. UCG77
