Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp - SCU4CH
$20.735
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description

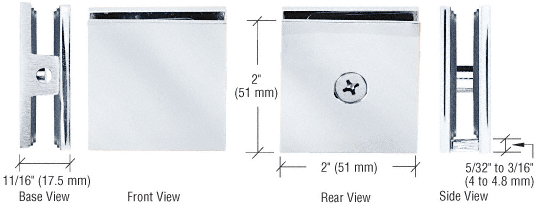

GDI Square Style Hole-in-Glass Fixed Panel U-Clamps feature sharp corners and come in a variety of finishes. One mounting screw per clamp is included. Clearance between the glass and the wall is 3/16 inch (5 millimeter). They perform the same function as our Standard Square Wall Mount Clamps. The glass fabrication difference between the two clamps is that this one requires a hole.
Color
Chrome
Height
2 in (51 mm)
Width
2 in (51 mm)
Brand
Glass Distributors Inc.
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
SCU4CH
GDI Square Style Hole-in-Glass Fixed Panel U-Clamps feature sharp corners and come in a variety of finishes. One mounting screw per clamp is included. Clearance between the glass and the wall is 3/16 inch (5 millimeter). They perform the same function as our Standard Square Wall Mount Clamps. The glass fabrication difference between the two clamps is that this one requires a hole.
For 5/16 to 1/2" (8 to 12 mm) Glass Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures Solid Brass A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look Glass Fabrication Required to Accommodate Clamps
The Fixed Panel Clamp is recommended for 5/16 to 1/2 inch (8 to 12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness is required by the Temperer (from the edge of the glass to the closest edge of the hole).
Requires drilling 5/8 or 3/4 inch (16 or 19 millimeter) hole.
The Fixed Panel Clamp is recommended for 5/16 to 1/2 inch (8 to 12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness is required by the Temperer (from the edge of the glass to the closest edge of the hole).
Requires drilling 5/8 or 3/4 inch (16 or 19 millimeter) hole.
