Black Traditional Style Fixed Panel U-Clamp - UC77BL

$48.035
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
GDI Traditional Style Fixed Panel U-Clamps have rounded corners and mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is from 5/32 to 3/16 inch (4 to 5 millimeter). Clear silicone can be used to seal the gap and provide a clean, water-tight appearance.
Color
Black

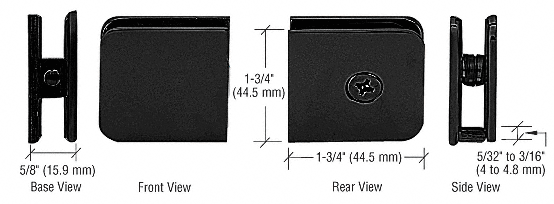

Height
1-3/4 in (44 mm)
Width
1-3/4 in (44 mm)
Brand
Glass Distributors Inc.
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
UC77BL
GDI Traditional Style Fixed Panel U-Clamps have rounded corners and mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is from 5/32 to 3/16 inch (4 to 5 millimeter). Clear silicone can be used to seal the gap and provide a clean, water-tight appearance.

  • For 5/16" to 3/8" (8 to 10 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • Specifications:
  • Material: Solid Brass
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Hole Diameter Required: 5/8 to 3/4 Inch (16 to 19 millimeter)
  • Includes: Mounting Screw and Gaskets
  • Note: An Additional Set of Gaskets is Required for 5/16 Inch (8 millimeter) Glass Cat. No. UCG77
