Antique Bronze 90 Degree Traditional Style Oversized Glass Clamp

$79.235
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
GDI Oversized 90 Degree Glass Clamps are especially suggested for use in 1/2 inch (12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness is required by the Temperer (from the edge of the glass to the closet edge of the hole). Includes wood screw for optional wall mounting installation. An additional set of gaskets is required for 5/16 inch (8 millimeter) glass.
Color
Antique Bronze

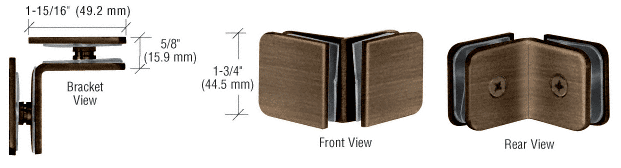

Height
1-3/4 in (44 mm)
Width
1-15/16 in (49 mm)
Brand
Glass Distributors Inc.
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
GCB91ABRZ
GDI Oversized 90 Degree Glass Clamps are especially suggested for use in 1/2 inch (12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness is required by the Temperer (from the edge of the glass to the closet edge of the hole). Includes wood screw for optional wall mounting installation. An additional set of gaskets is required for 5/16 inch (8 millimeter) glass.

  • For 5/16" to 1/2" (8 to 12 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • SPECIFICATIONS:
  • Material: Solid Brass or Stainless Steel
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Includes: Gaskets and Wood Screw to be Used for Optional Wall Mounting Application
  • An Additional Set of Gaskets is Required for 5/16 Inch (8 millimeter) Glass
