White Square 135 Degree Glass-to-Glass Clamp - SGC135W

$75.335
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description

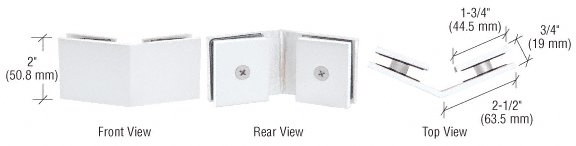

GDI Square Style 135 Degree Glass-to-Glass Clamps have sharp corners, and are designed for securing two panels at a 135 degree angle. The glass can be mitered or flat edged. Clamp is designed to clamp 5/16 to 1/2 inch (8 to 12 millimeter) glass panels which meet at a 135 degree angle.
Color
White
Height
2 in (51 mm)
Brand
C.R. Laurence
Weight
0.5000
Leg width
2-1/2 in (64 mm)
Minimum order
1 Each
Oversized
No
sku
SGC135W
GDI Square Style 135 Degree Glass-to-Glass Clamps have sharp corners, and are designed for securing two panels at a 135 degree angle. The glass can be mitered or flat edged. Clamp is designed to clamp 5/16 to 1/2 inch (8 to 12 millimeter) glass panels which meet at a 135 degree angle.

  • For 5/16" to 1/2" (8 to 12 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • Specifications
  • Material: Forged Solid Brass
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Fabrication Required: 5/8 or 3/4 Inch (16 or 19 millimeter) Holes for Glass-to-Glass Clamps
  • Includes: Mounting Screws (for wall clamps) and Gaskets
