Brushed Nickel Square Style Notch-in-Glass Fixed Panel U-Clamp

$22.035
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
GDI Square Style Notch-in-Glass Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. The notch required in the panel allows for a 1/16 inch (2 millimeter) clearance. Two mounting screws are included per clamp. Clear silicone can be used to seal the gap and provide a clean, water-tight appearance. Drawings and templates are available.
Color
Brushed Nickel
Height
2 in (51 mm)
Width
2 in (51 mm)
Brand
Glass Distributors Inc.
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
SGCU1BN
GDI Square Style Notch-in-Glass Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. The notch required in the panel allows for a 1/16 inch (2 millimeter) clearance. Two mounting screws are included per clamp. Clear silicone can be used to seal the gap and provide a clean, water-tight appearance. Drawings and templates are available.

  • For 5/16" to 1/2" (8 to 12 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • Specifications
  • Material: Forged Solid Brass
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Fabrication Required: Notch for Wall Mount Clamps
  • Includes: Mounting Screws (for wall clamps) and Gaskets

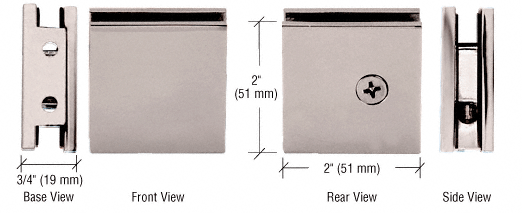

    Note: Image shows front and back, although these are sold individually.
