Gun Metal 180 Degree Traditional Style Glass Clamp - GCB180GM

$59.735
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
GDI Traditional Style 180 Degree Glass-to-Glass Single Stud Clamps have gradually rounded corners, and are ideal for inline panel installations. An additional set of gaskets is required for 5/16 inch (8 millimeter) glass. Panels can be notched to fit around the screw stud.
Color
Gun Metal

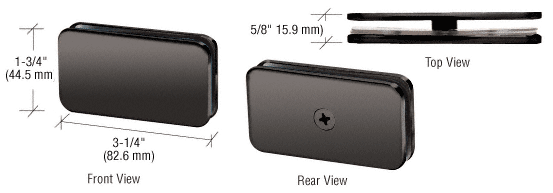

Height
1-3/4 in (44 mm)
Width
3-1/4 in (83 mm)
Brand
Glass Distributors Inc.
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
GCB180GM
GDI Traditional Style 180 Degree Glass-to-Glass Single Stud Clamps have gradually rounded corners, and are ideal for inline panel installations. An additional set of gaskets is required for 5/16 inch (8 millimeter) glass. Panels can be notched to fit around the screw stud.

  • For 5/16" to 1/2" (8 or 12 mm) Thick Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • Specifications:
  • Material: Solid Brass
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Fabrication Required: Stud Will Fit Between Panels With 7/16 Inch (11 millimeter) Gap, or you can Notch the Glass for a Tighter Gap
  • Includes: Gaskets
  • Note: An Additional Set of Gaskets is Required for 5/16 Inch (8 millimeter) Glass
