GDI White 90 Degree "Sleeve Over" Glass Clamp
$88.53
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description

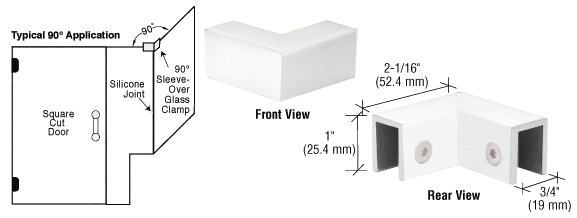

GDI 90 Degree Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the two glass panels in a 90 degree position while silicone applied silicone in the joint cures.
Color
Finish: WHITE
Brand
C.R. Laurence
Weight
8 oz (227g)
Minimum order
1 Each
Oversized
No
Width each leg
2-1/16 in (52 mm)
Important Notes
These Clamps are not designed to take the place of Headers or a Support Bar.
sku
S0GC90W
For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Solid Brass
Use Monolithic Tempered Glass
Assists With Shear Forces
Holds Glass Panels in Position While Sealant Cures#GDI Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
