GDI Polished Nickel Traditional Movable Glass-To-Glass Transom Glass Clamp

$92.04

Quantity discounts 2-10: 5% off, 11 - 20 : 10% off

GDI Polished Nickel Traditional Movable Glass-To-Glass Transom Glass Clamp

Short description

This GDI Movable Glass-to-Glass Transom Clamp can be used to pivot transom panels above the shower door. Wall Mount and Glass-to-Glass Clamps can be used in any combination, depending upon the configuration of the enclosure. Includes mounting screws and gaskets.

Color

Finish: POLISHED NICKEL

Brand

C.R. Laurence

Weight

8 oz (227g)

Hole diameter required

5/8 or 3/4 in (16 to 19 mm)

Minimum order

1 Each

Oversized

Important Notes

Maximum transom size is 12" (305 mm) high x 30" (762 mm) wide. Larger transoms require the use of pivot hinges used as a transom clamp. Contact Technical Sales Shower Door Department for details.

sku

GCB188PN

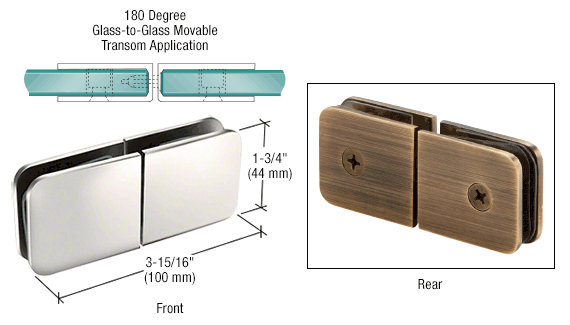

For 5/16" to 1/2" (8 to 12 mm) Thick Glass Glass-to-Glass Application Special Nylock Nut Allows Pivoting of Clamps Glass Transom Swivels to Allow Release of Steam Use Monolithic Tempered Glass#The Traditional 180 Degree Glass-to-Glass Movable Transom Clamp is designed to pivot transom panels above the shower door. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
