GDI Polished Chrome 135 Degree Movable Transom Clamp

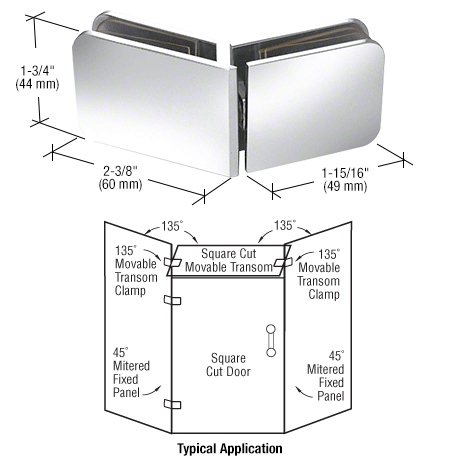

For 5/16" to 1/2" (8 to 12 mm) Thick Glass Use Monolithic Tempered Glass Glass Transom Swivels to Allow Release of Steam Can Be Used in Conjunction with Other GDI Movable Transom Clamps#These GDI Clamps can also be used in combination with our Wall Mount Movable Transom Clamp (Cat. No. GCB186), or our 180 Degree Glass-to-Glass Movable Transom Clamp (Cat. No. GCB188). The movable transom and the door should be square cut, while the fixed panel using the 135 Degree Movable Transom Clamp should be mitered at 45 degrees. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
