Brushed Nickel 180° Traditional Split Face and "Y" Inline Glass Clamp

$51.935
Quantity discounts 2-10: 5% off, 11 - 20 : 10% off
Short description
This dual purpose GDI Traditional Style 180 Degree Split Face and "Y" Inline Glass Clamp can be used to connect glass panels inline, or as a "Y" Clamp to fasten glass panels flush with edge of marble or tile walls. Solid brass Clamp includes extra screw for use in "Y" configuration. An additional set of gaskets is required for 5/16 inch (8 millimeters) glass.
Color
Brushed Nickel

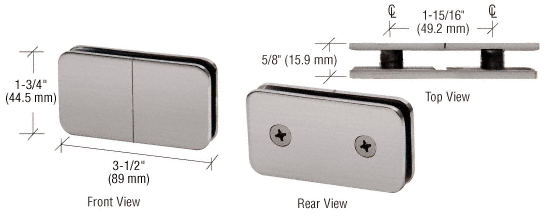

Height
1-3/4 in (44 mm)
Width
3-1/2 in (89 mm)
Brand
Glass Distributors Inc.
Weight
0.5000
Minimum order
1 Each
Oversized
No
sku
GCB182BN
This dual purpose GDI Traditional Style 180 Degree Split Face and "Y" Inline Glass Clamp can be used to connect glass panels inline, or as a "Y" Clamp to fasten glass panels flush with edge of marble or tile walls. Solid brass Clamp includes extra screw for use in "Y" configuration. An additional set of gaskets is required for 5/16 inch (8 millimeters) glass.

  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps




    • SPECIFICATIONS:
  • Material: Solid Brass
  • Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
  • Hole Size Required: 5/8 or 3/4 Inch (16 or 19 millimeter)
  • Includes: Mounting Screws and Gaskets
